MT-2017N

Global
Taiwan
China

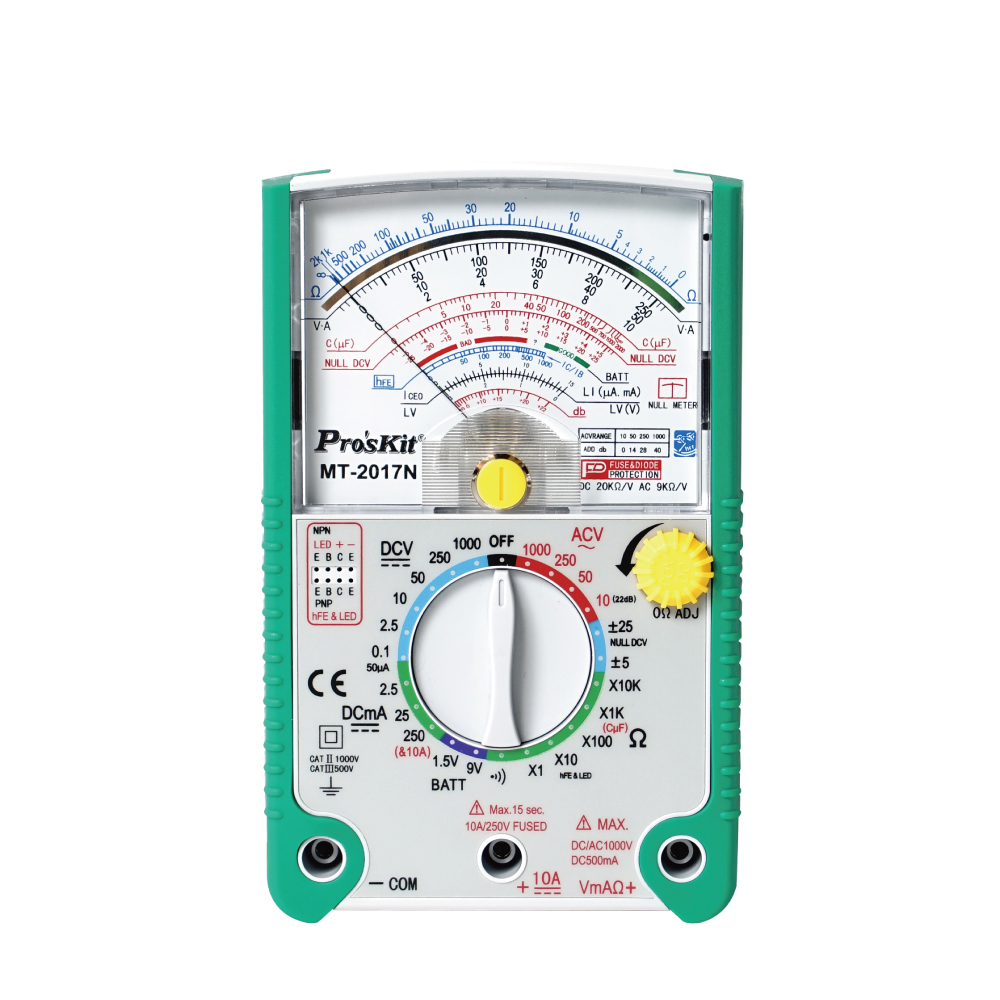

Protective Function Analog Multimeter

• An accurate, safe handheld meter that comes with mirrored Aluminum dial
• Robust protective holster alongside, built-in stand and hook-up design

Practice equipment

I would like to make an offer

Features
Videos
FAQ
Downloads
Dealer
Support

MT-2017N

MT-2017N

MT-2017N

MT-2017N

MT-2017N

MT-2017N

MT-2017N

MT-2017N

MT-2017N

MT-2017N

Specification
DCV	0.1/2.5/10/50/250V ±3.0%FSD, 1000V ±4.0%FSD
Null DCV	DC±5V, ±25V ±5.0%FSD
ACV	10/50/250V ±4.0%FSD, 1000V±5.0%FSD
DCA	50μ//2.5m/25m/250mA ±3.0%FSD,10A ±4.0%FSD
Resistance	×1(0.2~2kΩ)/ ×10(2~20kΩ)/ ×100(20~200kΩ)/ ×1k(200~2MΩ)/ ×10kΩ(2k~20MΩ) ±4.0%ARC of scale length
Capacitance	C(R×1k): 2000μF(Approx.) Max
Battery check	1.5V/9V
Transistor check	Yes
Diode & LED test	Yes
Continuity with beeper	Yes
Front panel controls	Range selector switch with “OFF” position, 0Ω adjust knob
Battery	1.5V AAA x 2 and 9V(NEDA1604) x 1
Size	171 x 108 x 37mm
Individual Packing	Color box

The multimeter does not work.(Video) ▶️ 2021.12 Update

Are the batteries exhausted? Is the power indicator lit? Check the state of the batteries and the fuse 0.5A.
MT-2017N HOW TO USE？ (Video) ▶️ 2022.1 Update

MANUAL_MT_2017N.pdf (Multi Language)	Manual	Download

Shipping Instructions

SHIP FROM	SH
PACKING	Colox Box
QTY'/CTN	32
N.W.	16.5 Kg
G.W.	16.55 Kg
CUFT	2.2
M3 (CBM)	0.06
MOQ	32
