Pocket Autorange Multimeter

Pocket Autorange Multimeter

Pocket Autorange Multimeter

Pocket Autorange Multimeter

MT-1509

Global
Taiwan
China

Pocket Autorange Multimeter

Auto Selection and
Auto Range
Non-contact ACV detector
LED flashlight

Electronic Production line Computer-Laptop Home DIY Student

I would like to make a query

Features
Videos
Downloads
Dealer
Support

MT-1509

MT-1509

MT-1509

MT-1509

MT-1509

MT-1509

MT-1509

MT-1509

MT-1509

MT-1509

MT-1509

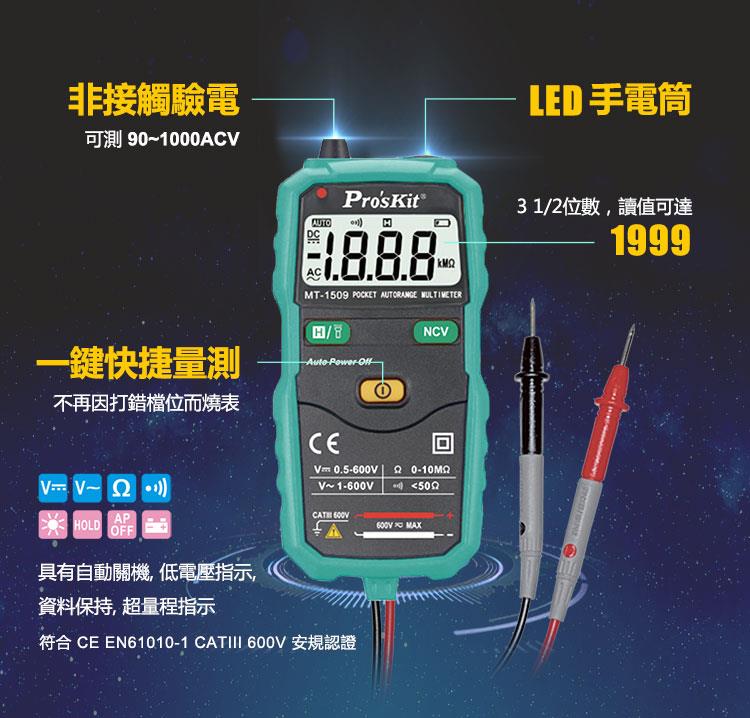

Comply with CE EN61010-1 CATIII 600V safety rated.
3 1/2 digits 1999 counts, 0.5% best accuracy.
LCD with backlight allows work in dark area and great to understand reading.
Auto selection DCV, ACV, Resistance.
Only one touch, smart measuring accurate in seconds.
Non contact ACV detector, tests 90~1000V.
Pocket size design for easy carrying.
Built-in LED flash light

Specifications	MT-1509
DCV	2V/20V/200V±(0.5%+3d) 600V±(0.8%+5d)
ACV	2V/20V/200V±(0.8%+3d) 600V±(1.0%+5d)
Resistance	2kΩ/20kΩ/200kΩ/2MΩ±(1.0%+3d) 10MΩ±(1.2%+15d)
Non contact ACV detector	Y
LED light	Y
Continuity with beep	Y
Data Hold	Y
Certificate	RoHS, CE EN61010-1 CATIII 600V
Battery	2x1.5V AAA (not included)
Weight	140g (not including battery)
Dimension	125mmx60mmx26mm

MT_1509.pdf (Multi Language)	Manual	Download

Shipping Instructions

SHIP FROM	SH
PACKING	Blister Card
QTY'/CTN	60
N.W.	13 Kg
G.W.	14.6 Kg
CUFT	2.9
M3 (CBM)	0.08
MOQ	0
