3 5/6 True RMS Digital Multimeter

3 5/6 True RMS Digital Multimeter

3 5/6 True RMS Digital Multimeter

3 5/6 True RMS Digital Multimeter

3 5/6 True RMS Digital Multimeter

3 5/6 True RMS Digital Multimeter

MT-1217-C

China

3 5/6 True RMS Digital Multimeter

Auto Range/Frequency/Capacitance/ Temperature/DMM All in 1.
AC True RMS measurement

Only sale in Mainland China, please choose MT-1217 instead if you are located in other countries

Electronic Production line Phone Repair Enterprise Network Setup Hydropower Industry Home DIY

I would like to make an offer

Features
Downloads
Dealer
Support

Complies with newest CE safety standard
AC True RMS measurement
3 5/6 digits 5999 counts
Large and easy to read display panel
Overload and resettable fuse protection circuit design

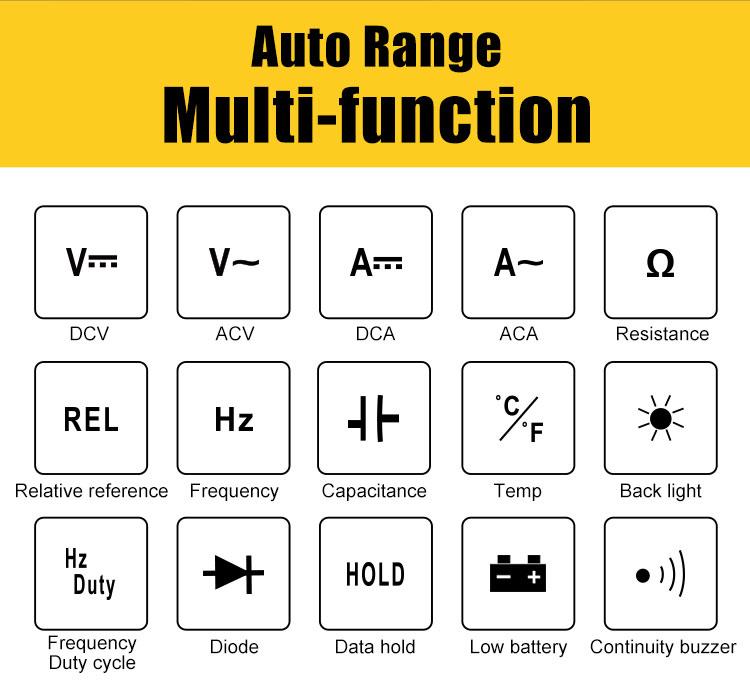

Extra function: Auto range, relative reference, backlight, data hold, auto power off, low battery indication

**Only sale in Mainland China, please choose MT-1217 instead if you are located in other countries**

Model No.	MT-1217-C
Digits	3 5/6digits, 5999 counts
DCV	600mV/6V /60V/600V±(0.5%+4d) 1000V ±(1%+6d)
ACV	600mV±(1%+10d), 6V /60V/600V±(0.8%+6d), 750V ±(1%+10d), True RMS
DCA	600uA/6000uA/60mA/600mA, ±(1%+10d), 10A±(1.2%+10d)
ACA	600uA/6000uA/60mA/600mA, ±(1.5%+10d), 10A±(2.5%+15d), True RMS
Frequency response	40Hz~1000Hz
Resistance	600Ω±(0.8%+5d), 6K/60K/600K/6M±(0.8%+4d), 60MΩ ±(1.2%+10d)
Capacitance	9.999nF ±(5 %+35d) 9.999nF~~999.9uF ±(3.5%+8d) 999.9uF~6mF ±(3.5%+35d)
Frequenct	10~20MHz±(1%+10d)
Temperature	-20℃~1000℃, <400˚C±(1.0%+5d) ≥400˚C±(1.5%+15d)
Temperature	-4℉~ 1832℉,< 752℉±(1.0%+5d), ≥ 752℉±(1.5%+15d)
NCV detection	Y
Buzzer	Y
Diode test	Y
Triode test	Y
Hz/% Test	Y
Relative value	Y
Data hold	Y
Auto power off	Y
LED backlight	Y
Safety standard	CE,CAT III 1000V
Power source	9V(6F22*1)(included)

**Only sale in Mainland China, please choose MT-1217 instead if you are located in other countries**

MT_1217_MANUAL.pdf (Multi Language)	Manual	Download

Shipping Instructions

SHIP FROM	SH
PACKING	Color box
QTY'/CTN	30
N.W.	16.2 Kg
G.W.	17.2 Kg
CUFT	2.24
M3 (CBM)	0.06
MOQ	0
